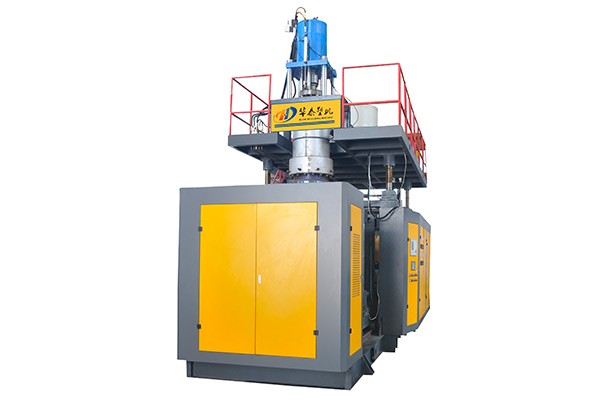

HT-120 - Blow Molding-Machine

Product Description

HT-120 Automatic Blow Molding Machine: This machine is a storage-type hydraulic automatic blow molding machine. It is completely made of German technology and can blow hollow plastics with capacities of PE, PP, AS and other materials from 100 liters to 220 liters. container. The machine is fully automated, high energy saving, low noise, fast speed, high efficiency, safe and reliable. It is widely used in chemical, petroleum, pharmaceutical, daily chemical, food, lighting, tools, automobiles, motorcycles, shoes, toys and other fields. , used to blow plastic buckets, chemical barrels, auto parts (water tanks, fuel tanks, air conditioning ducts, car tails), toys (wheels, hollow motorcycles, basketball hoops, children's castles), tool kits, dust collector pipes, sports Venues and public car seats. Security, commissioning, training, perfect quality assurance, full service, let you buy and use two assured.

Product Features:

1. Control system: The operation panel uses a 5.7-inch Chinese human-machine interface touch screen, and all operations, parameter setting, monitoring, product counting, wall thickness control and other visual operations. The device fault self-judgment shows that the operation is simple. Imported Japanese Mitsubishi PLC programmable controller has process parameter storage and transfer function, fast response, accurate positioning, and high stability of the system during operation.

2. Hydraulic system: all imported hydraulic valves, seals, electro-hydraulic proportional control. It has the characteristics of stable and reliable, accurate motion, long service life and fast response.

3. Extrusion system: It adopts hardened gear reduction gearbox and Japan imported Mitsubishi inverter, with screw frequency control, low noise, strong power, stable speed, long service life and energy saving; mixing screw, raw material adaptability Wide, better plasticizing quality, heating barrel and aluminum alloy heater, energy efficient.

4. Die system: It adopts the central injection material storage cylinder type die, and the horizontal bar is shot, which has high stability. The “first in, first out” storage type head has a reasonable and reliable structure.

5. Open and close mold system: pneumatic single-cylinder slide rail, fast and stable, four-plate, high-precision linear guide, hydraulic two-cylinder two-way open and close mold.

6. Type control system: optional Japanese MOOG and domestic 10 to 100 point wall thickness control system

7. Blowing system: optional blowing, side blowing, and upper blowing are optional.

8. Die cutter: Standard pneumatic cutter, fast standard.

9. Safety system: equipped with clamping protection device and light curtain sensing to ensure the safety of equipment and operators.

10. Electrical components: All international high-tech products are selected.

Technical Parameter

Model HT- 120
Applicable materials PE、PP、AS…
Production (empty circulation) Depending on the bottle type 260 / hour
Product capacity 1 cavity 220L
Number of dies Number 1
Number of stations Number 1
Extrusion system Screw diameter 120mm
Screw length to diameter ratio 30:1 L/D
Screw speed 6-56 r/min
Plasticizing ability 300kg/h
Number of screw heating segments 5
Die Storage tank volume 30L
Maximum diameter of the extrusion port 300mm
Die heating section 5 segments
Mold Number of cavities 1 cavity
Template spacing 350~1200mm
Clamping force 760KN
power power supply 220/380V,3phase 50/60Hz
Total heating power 150Kw
monitor rate 45Kw
Screw motor power 75Kw
Water source Cooling Tower
Air pressure 0.6~0.8 MPa
Auxiliary equipment 1 low pressure air compressor (required) 1.0m3/1.0MPa
1 crusher 65
Mixer 1 200kg
