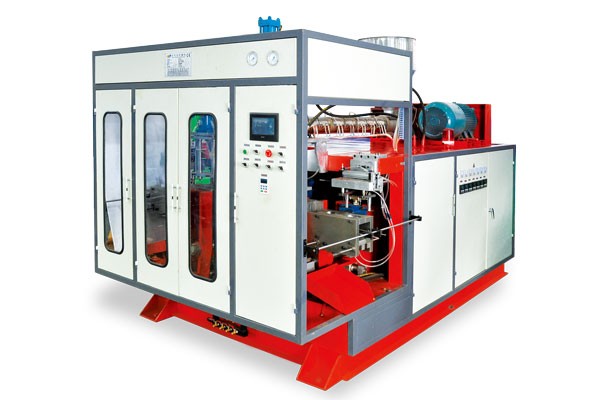

HT-50A Automatic Extrusion Blow Molding Machine: It is a one-step, one-shot, hydraulic, fully automatic extrusion blow molding machine with automatic cutting and deflashing device. It can be blown with PE, PP, AS and other thermoplastics. Plastics are available in any shape from 5 ml to 500 ml plastic hollow containers. The machine is fully automated, high energy saving, low noise, fast speed, high efficiency, safe and reliable. It is widely used in plastic packaging industry such as toys, food, beverage, medicine, chemical, pesticide, detergent, etc. Pesticide bottles, cosmetic bottles, large caliber bottles, hot filling bottles, etc. This machine has less investment, quick effect and convenient operation and maintenance. Security, commissioning, training, perfect quality assurance, full service, let you buy and use two assured, is the ideal choice for your purchase. The HT-50A machine has a single-die double-station, dual-mode dual-station.
| Model | HT-50A | |
| Suitable raw materials | PE、PP、AS... | |
| Theoretical yield | Depending on the type of bottle | 1500 / hour (500ml) |
| Maximum capacity of the product | 1 cavity/2 cavity | 500ml/200ml |
| Number of dies | Number | 1/2 |
| Number of stations | Number | 2 |
| Extrusion system | Screw diameter | 50mm |
| Screw diameter ratio | 22：1/ 20:1 L/D | |
| Screw speed | 10-75 r/miin | |
| Plasticizing ability | 35kg/h | |
| Mold | Number of cavities and number of dies | 1 cavity 2 pairs / 2 cavity 2 pairs |
| Product diameter | 70mm | |
| Mold thickness | 60-110mm | |
| Moving template stroke | 110mm | |
| Clamping force | 35KN | |
| power | power supply | 220-380V，3 segment 50-60hz |
| Heating energy | 6KW | |
| Drive motor | 5.5KW | |
| Average power consumption | 8KW | |
| Air pressure | 0.6Mpa | |
| Machine size | Length * width * height | 2640*1380*1780mm |
| Machine weight | 1500kg | |
| Auxiliary equipment | Low pressure air compressor 1 (required) | 1.0M3/1.0Mpa/15KW |
| grinder | 50 | |
| Mixer | 100kg | |
